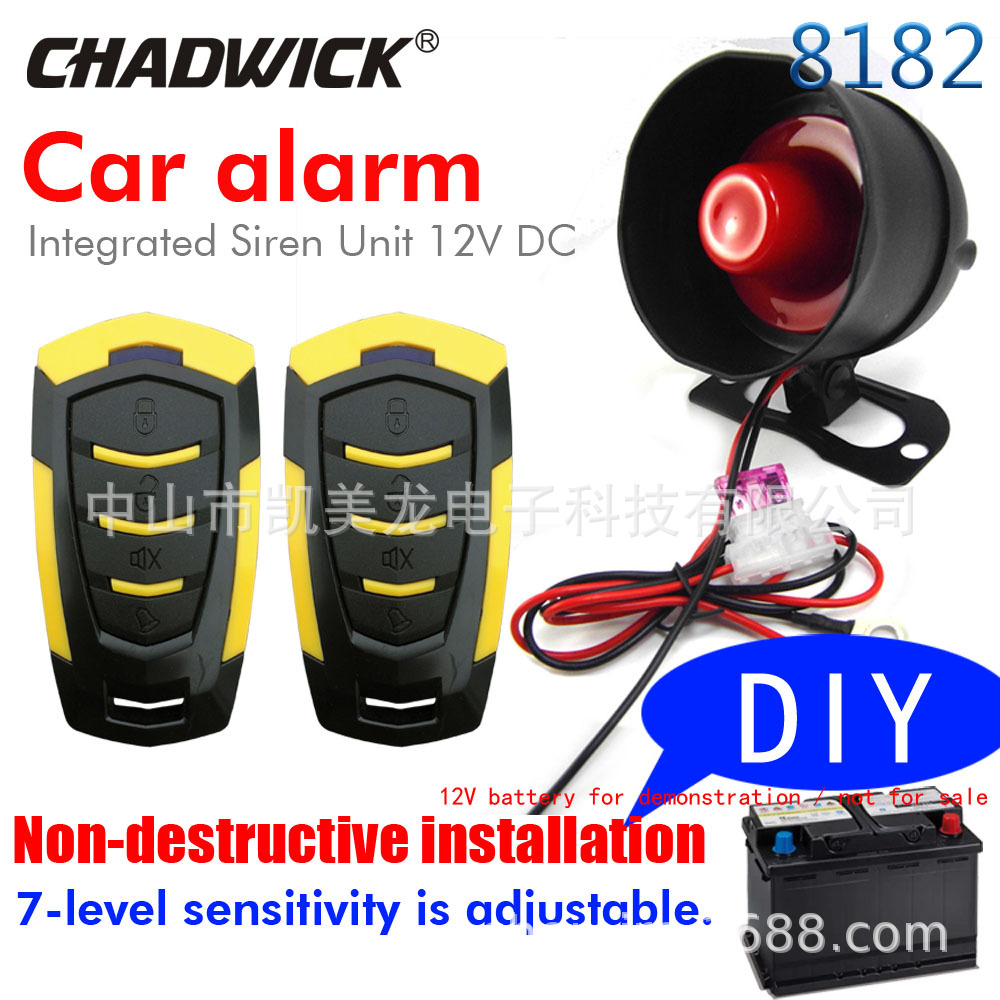

CHADWICK CAR ALARM SYSTEM

M810-8182
Non-Destructive installation
CAR ALARM SYSTEM

Specification:

1. Press the “ lock ”button, the siren sounds once, then enter the
anti-theft state in 5 seconds. If it is triggered by vibration, it
will be sound for 5 seconds. If it is triggered in 3 seconds again,
sounds for 30 seconds with 6 tones circulated.
2. Press the “unlock” button, the siren sounds twice, the unit disarm.
3.Car search function: Press “mute” or “bell” button, the siren sounds
30 seconds. Press any button to stop. No "mute" or "bell "button no functions.
4.Sensitivity adjustment: It has 7 levels, the 7th is the highest
sensitivity, and the 1st is the lowest sensitivity. Default is the 4th.
a. Increase sensitivity: Press the “lock”&“unlock” button for 3 seconds
at the same time. If the siren sounds 4 times, it means that is
the 4th gear. Press “lock” button once, the sensitivity increases
one gear, that is the 5th gear, the siren sounds 5 sounds.
By analogy, If the siren sounds 7 times, the sensitivity is 7th gear.
(Caution the 7th is high and easy to report falsely). After confirming
the required gear, do not operate the button for 5 seconds or press
“ lock”&“unlock” button for 3 seconds at the same time, and the siren
will sound 3 times to exit the sensitivity adjustment mode.
b. Reduce sensitivity: Press “lock”&“unlock” for 3 seconds at the same
time. If the siren sounds 4 times, it means the current gear is the
4th. When press the “ unlock ” button once, the sensitivity is reduced
by one gear, then the siren sounds 3 times, and then press “ unlock”
button again, the sensitivity is reduced to 2nd gear.
The 1st gear is the lowest gear. After confirming the required gear,
do not operate the button for 5 seconds or press “lock ”&“unlock” button
for 3 seconds at the same time, and the siren will sound 3 times to
exit the sensitivity adjustment mode.
5.Learning code: Method 1: Press the learning code switch on the
main unit inside, press any button on the remote, the siren will
sound once, indicating that the learning code is successful, and
the second remote learn code as first one.
Method 2: Continuously touch the power/battery for 5 times.
After the siren sounds, press any button on the remote, the siren
sounds 3 times, the code is learned successfully. It can learn up
to 2 remotes and the first remote automatically clears after the
third remote was code learned.

Specification:
Main unit:
Working voltage: DC 12 ±3V
Static current:10 mA
Siren: 10A
Working frequency: 433.92MHZ

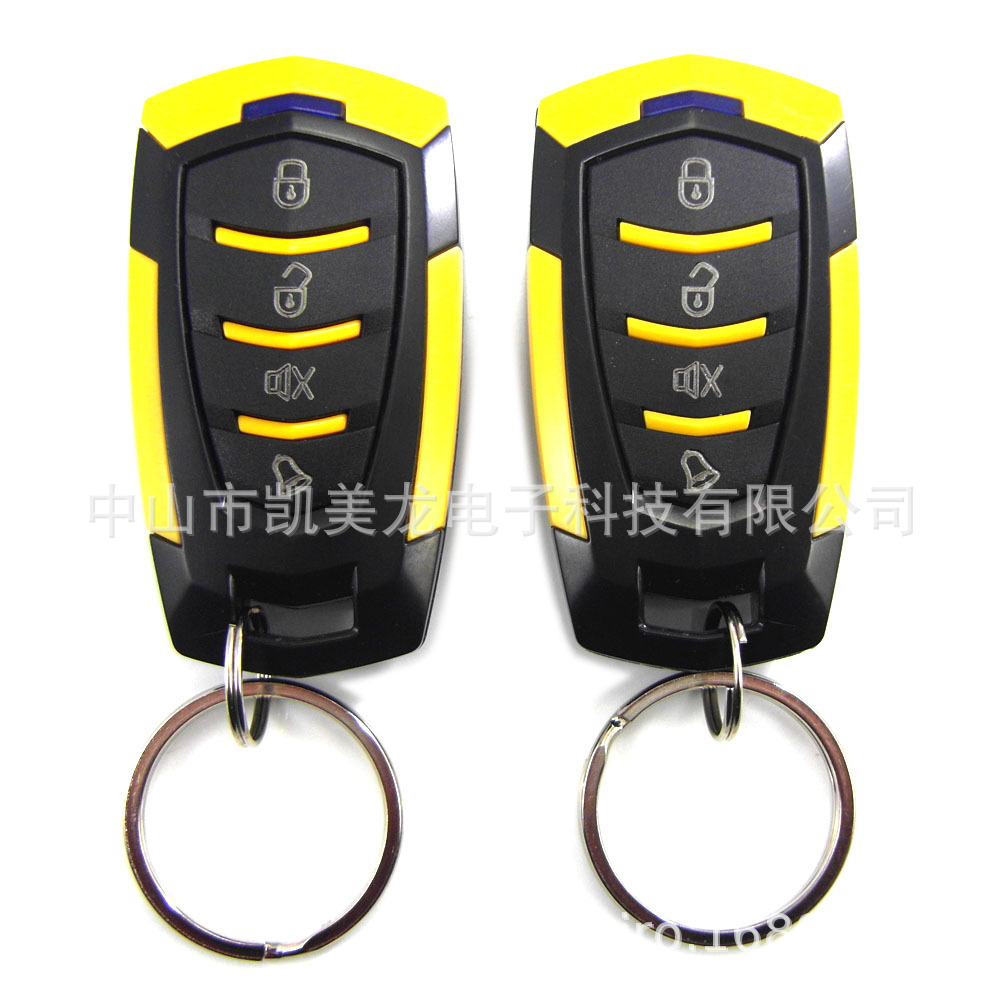

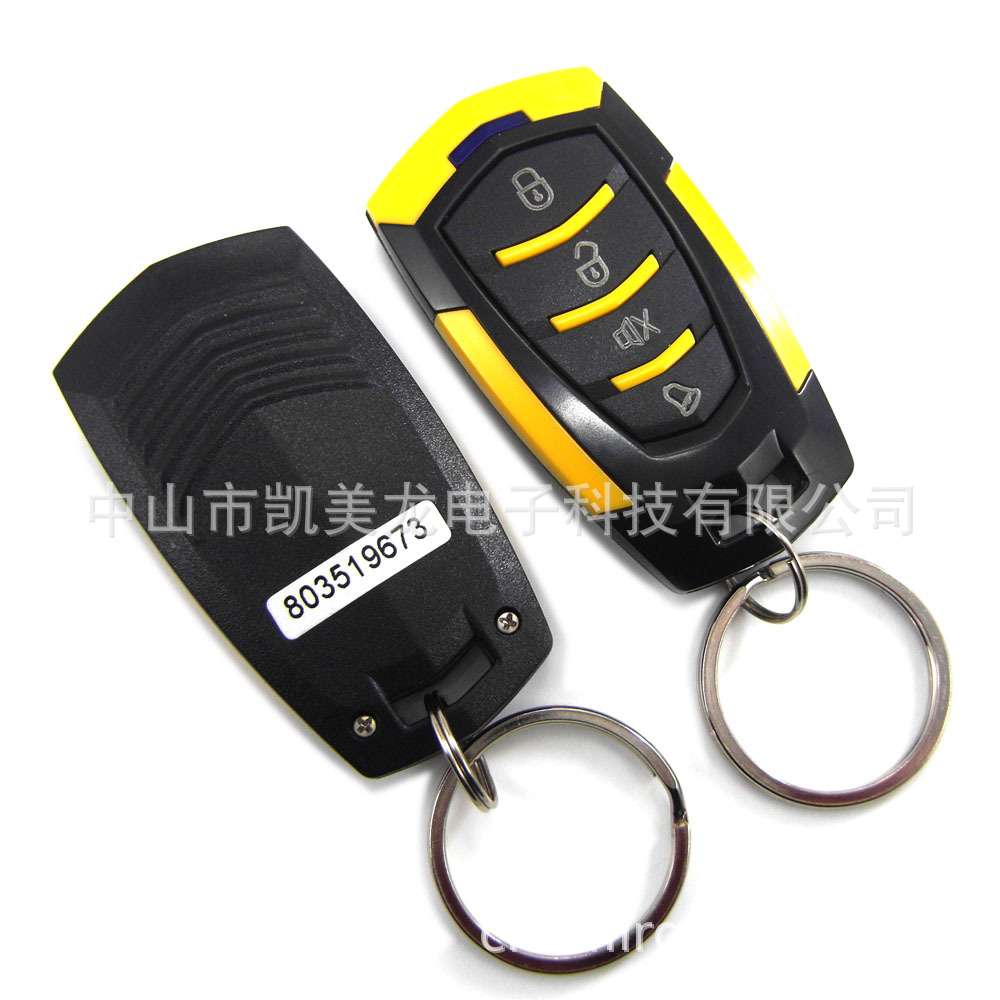

Remote control:
Working voltage: DC 12V
Average static current:0 mA
Battery:6V CR2016*2

About installation:
The product need installed by the Profesionales with Car electrician certificated OR by oneself
For 12V DC car
The item without central door lock functons

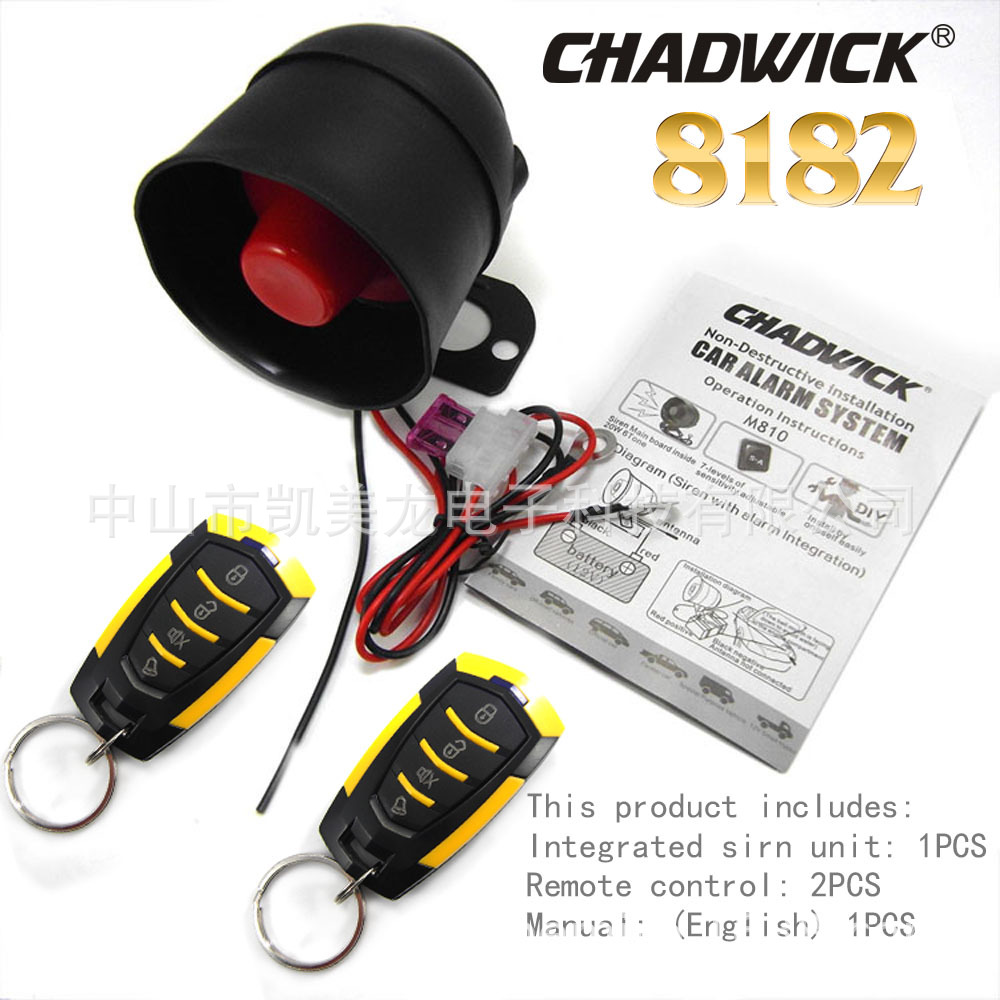

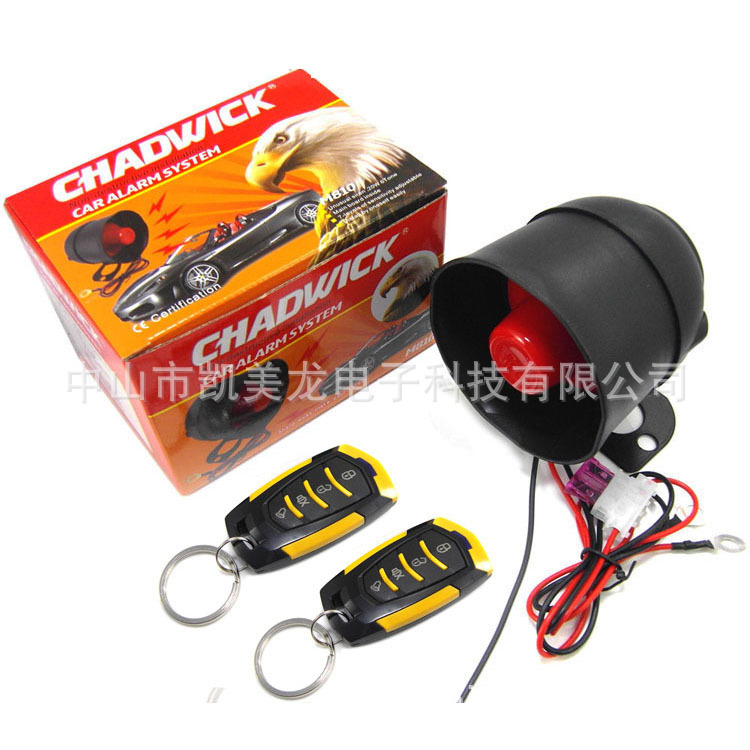

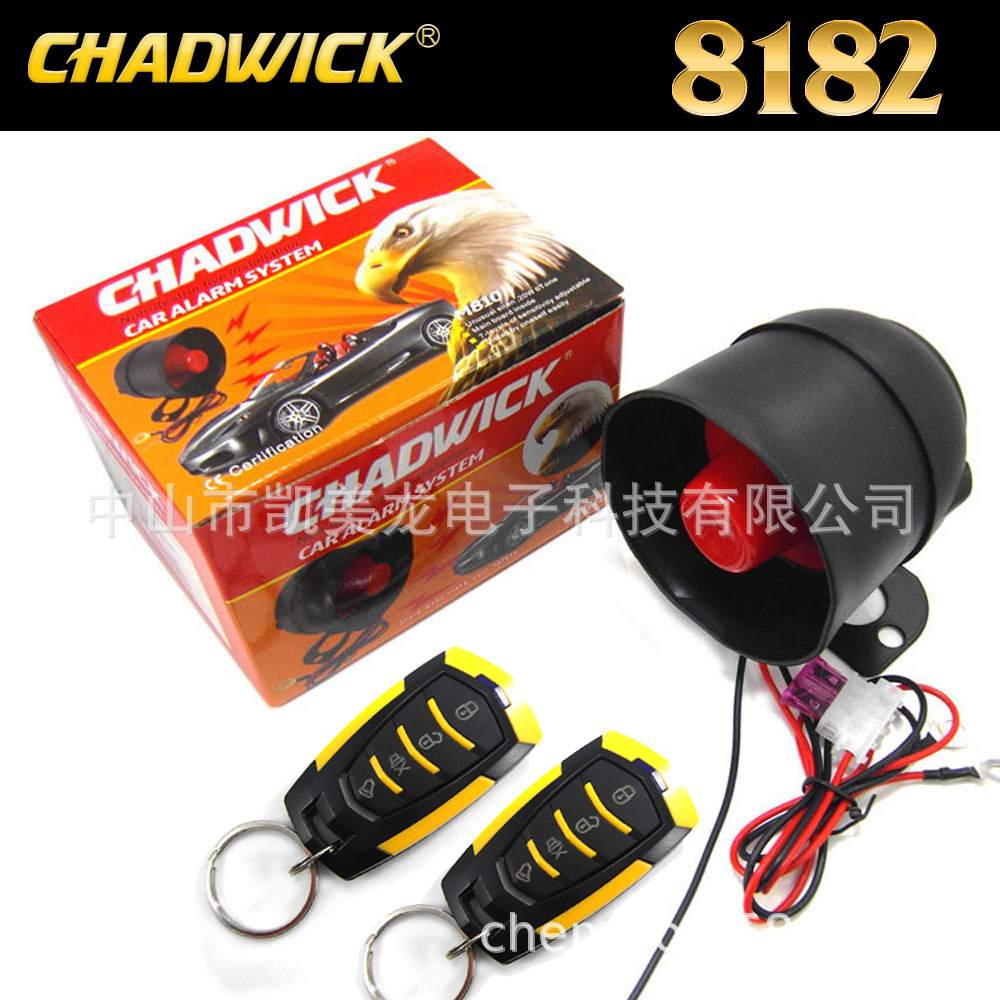

Package Include:

1x Main Control Unit
2x Remote Control
1x English User Manual
