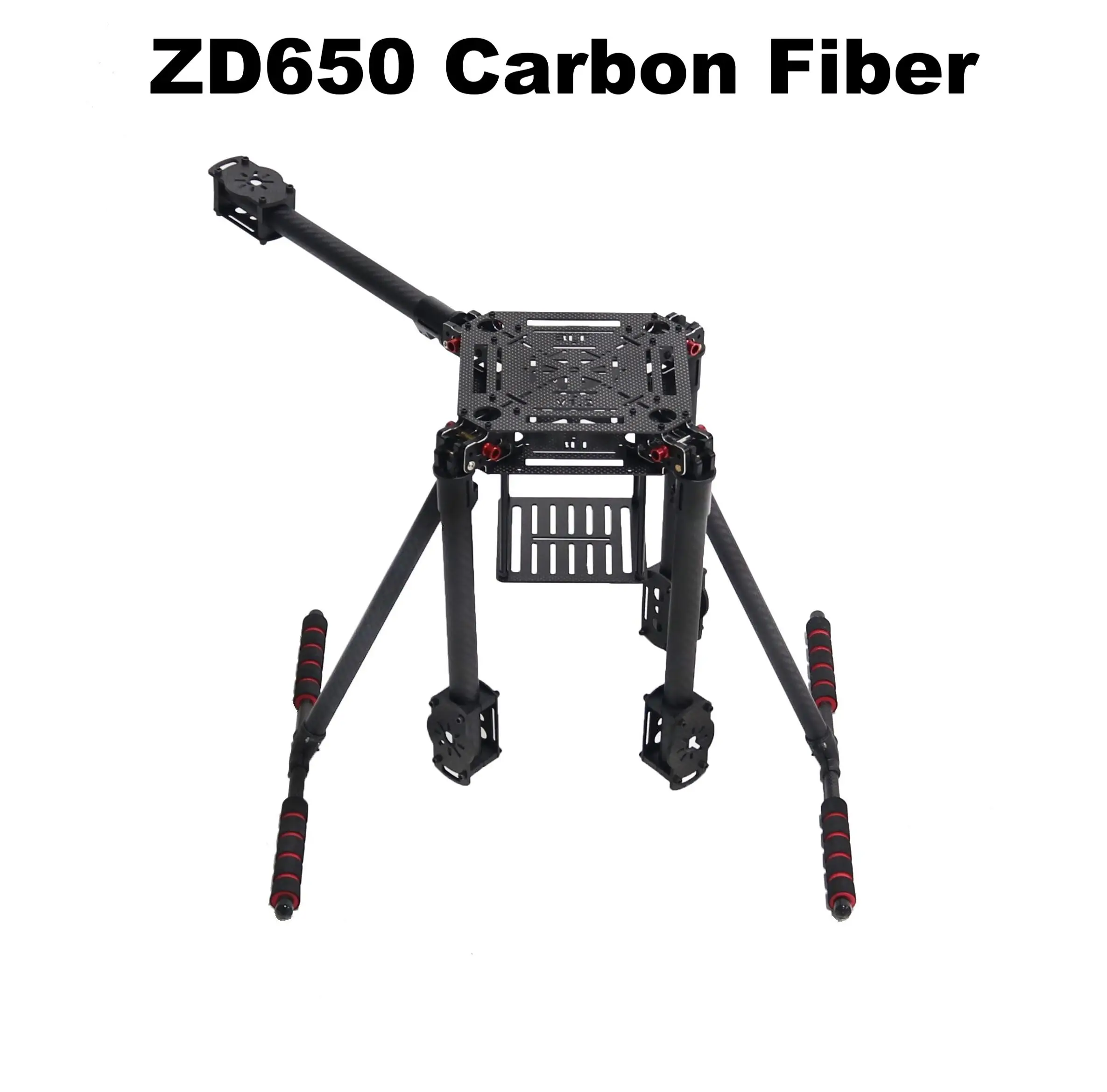

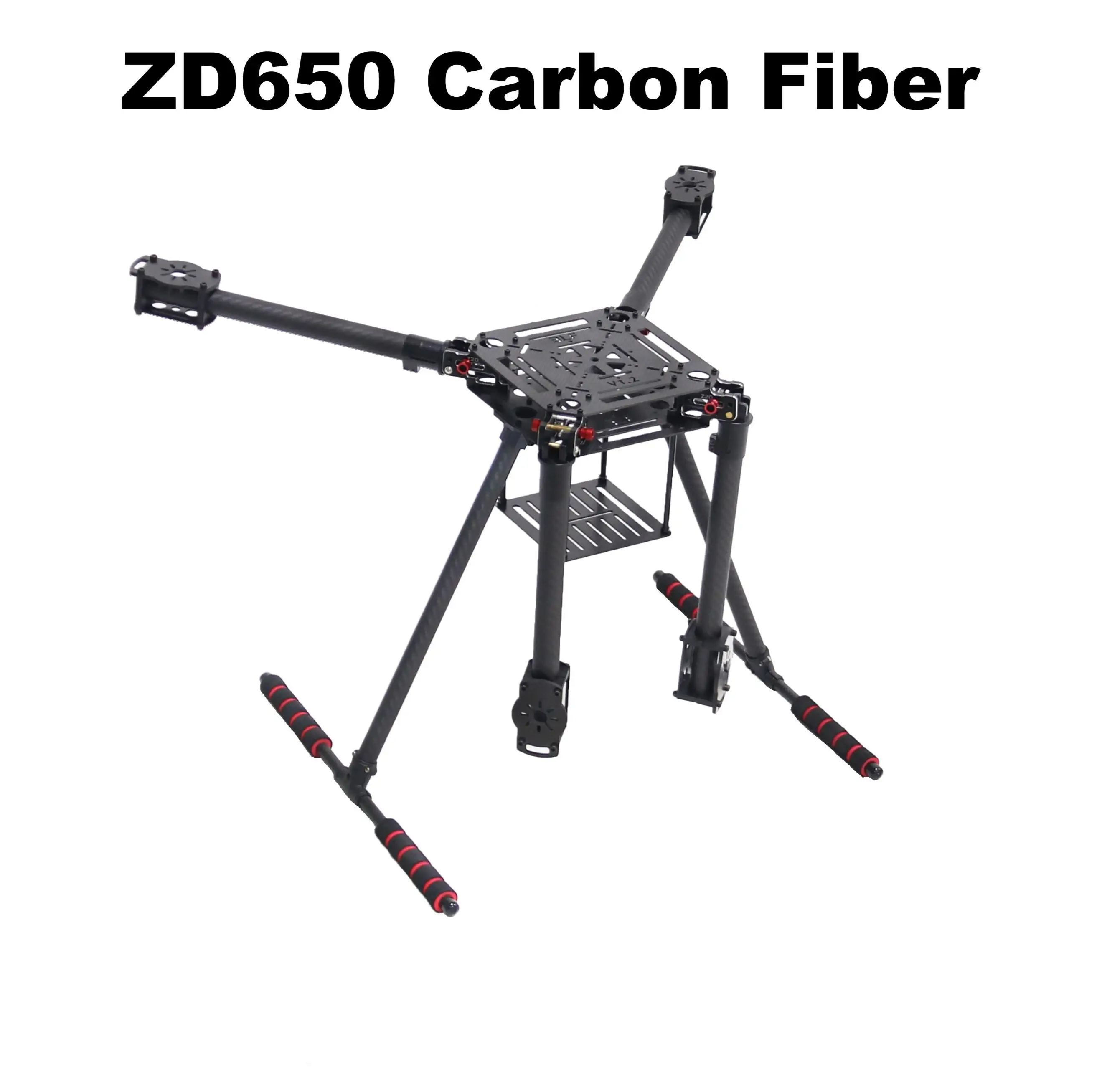

Bo Cube Carbon Fiber ZD650 Four Axis Aircraft Frame Pixhawk PRO V5 433MHZ 1000MW
- material alloy
- brand B-CUBE
- Control method -
- Is it electric is
- packaging method color box
- Описание
- Характеристики
- Отзывы

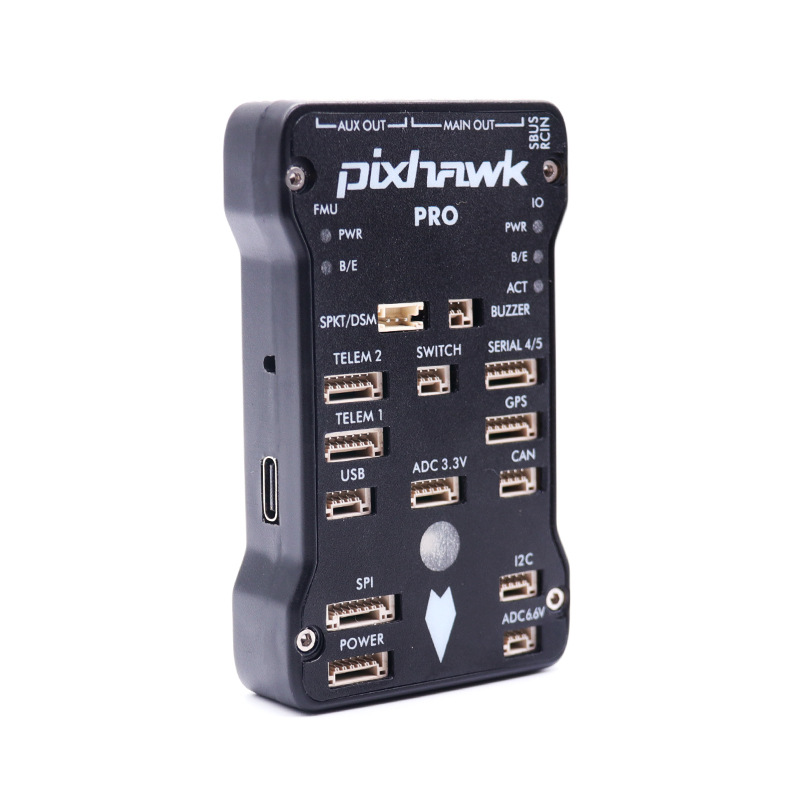

PIXHAWK PRO
Features:
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
10.TYPE-C USB port
11.GH1.25 port
Specifications:
Interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External TYPEC USB Interface
V5 433MHZ 1000MW:
F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetryV5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

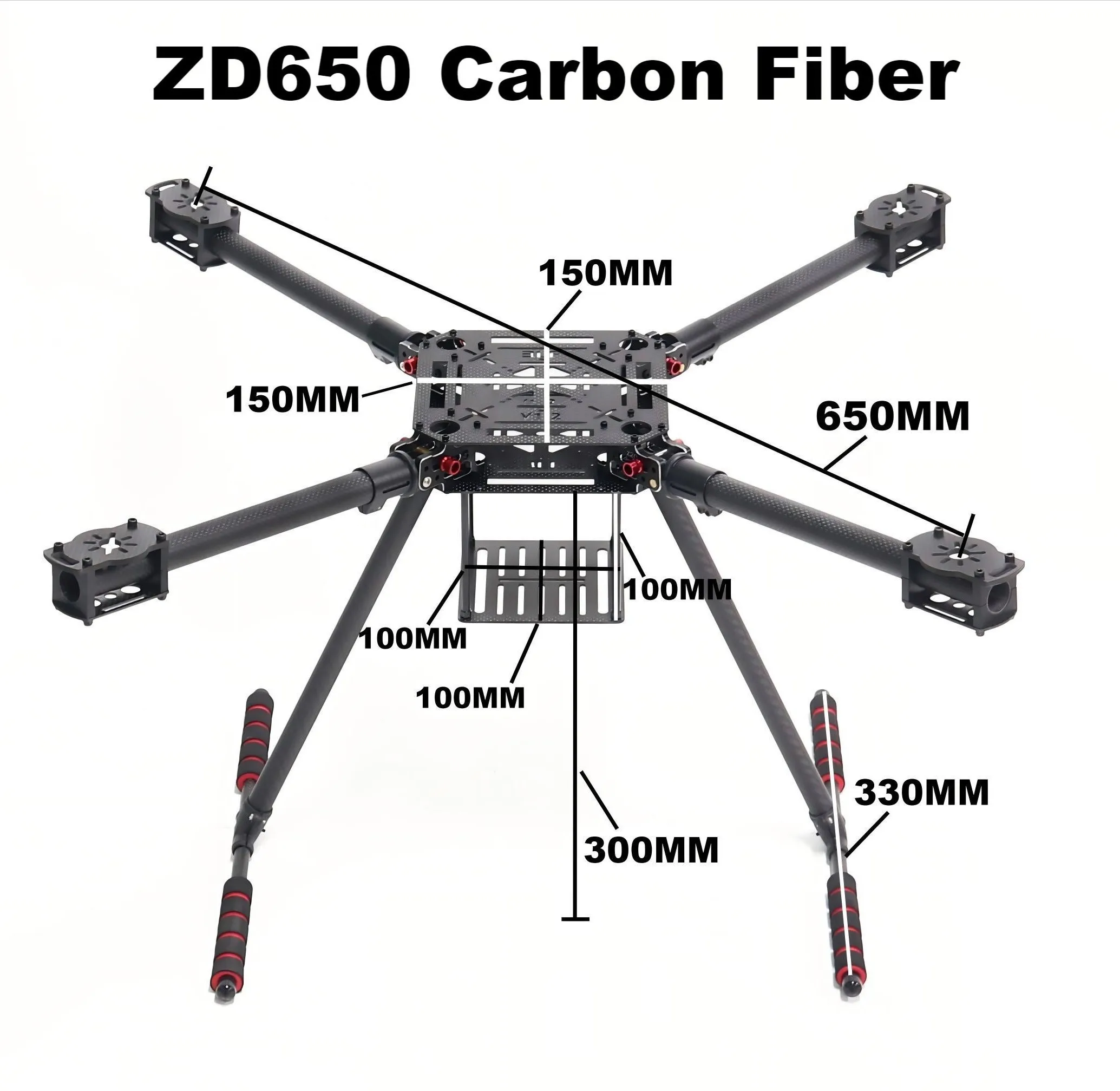

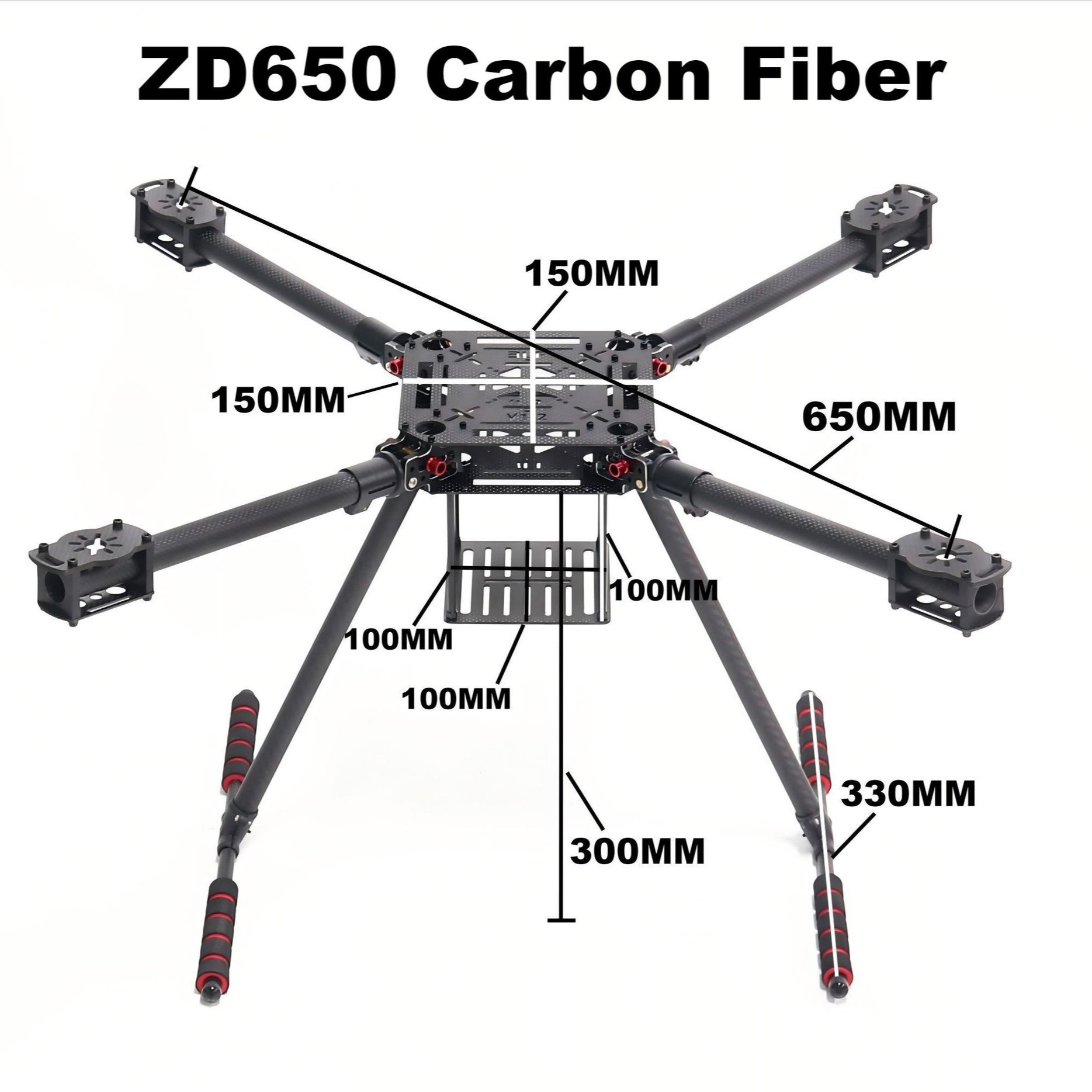

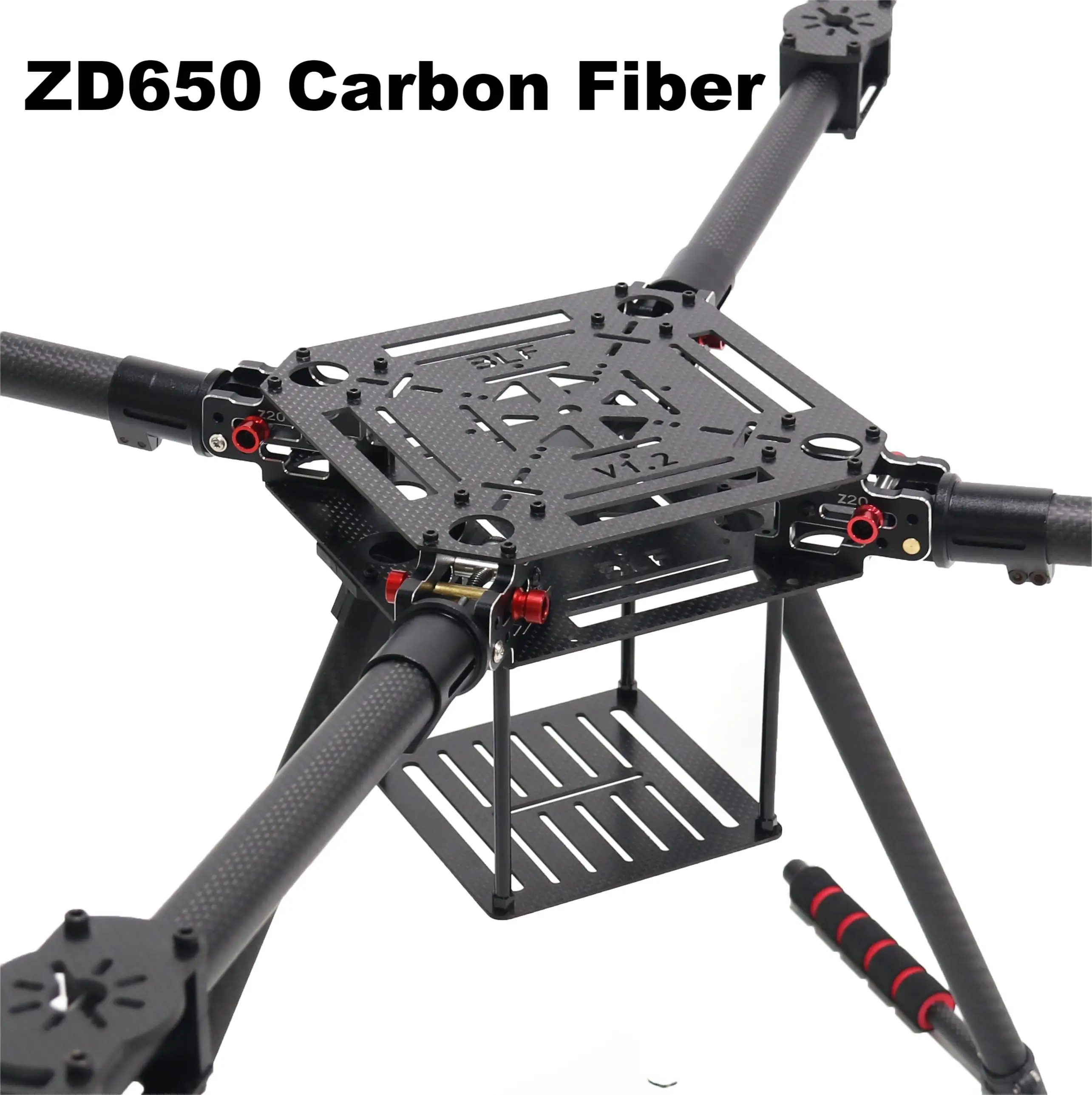

- Diagonal wheelbase: 650mm
- Landing gear height: 300mm

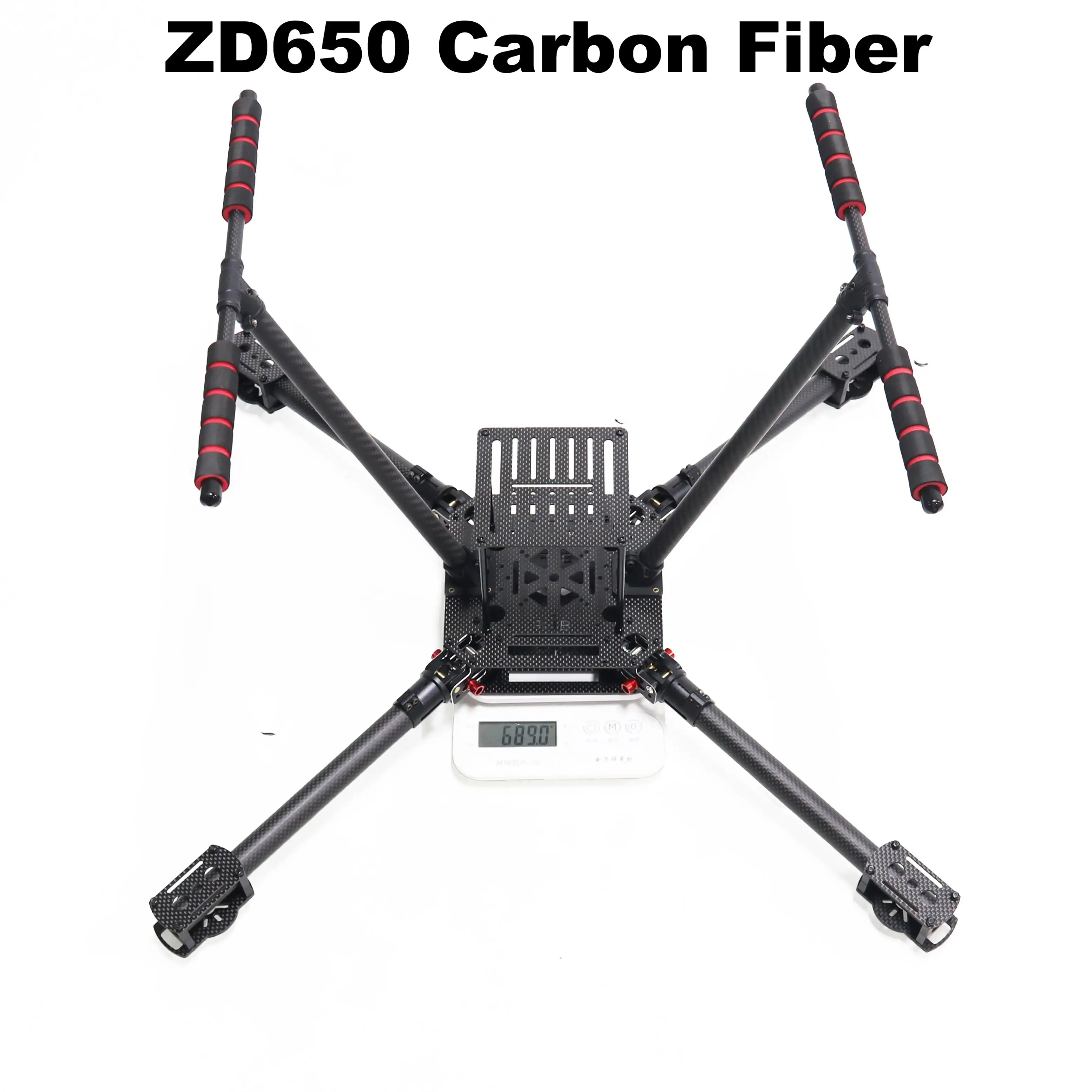

- Weight: 689 ±2 g

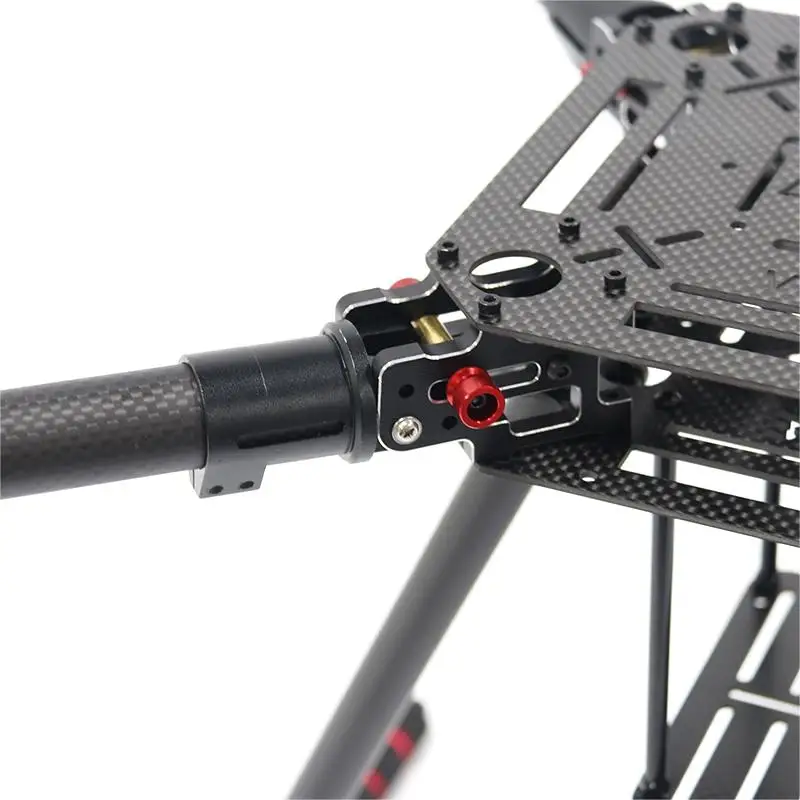

- Material of the main board : 3k full carbon fiber
- thickness of the main board : 1.5mm
- Arm diameter: 20MM
Recommended configuration: (Not inlcuded)
- Motor: 3508/D4114
- Prop: 14-16 inch CW CCW
- ESC: 40A (2-6S)
- Flight control:PIXHAWK Fightl Control
- Battery: 4-6S Lipo
Package includes:
- Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)
(note: the color of the landing gear pad is differenct because of the different prodcution batch, send the color at random)

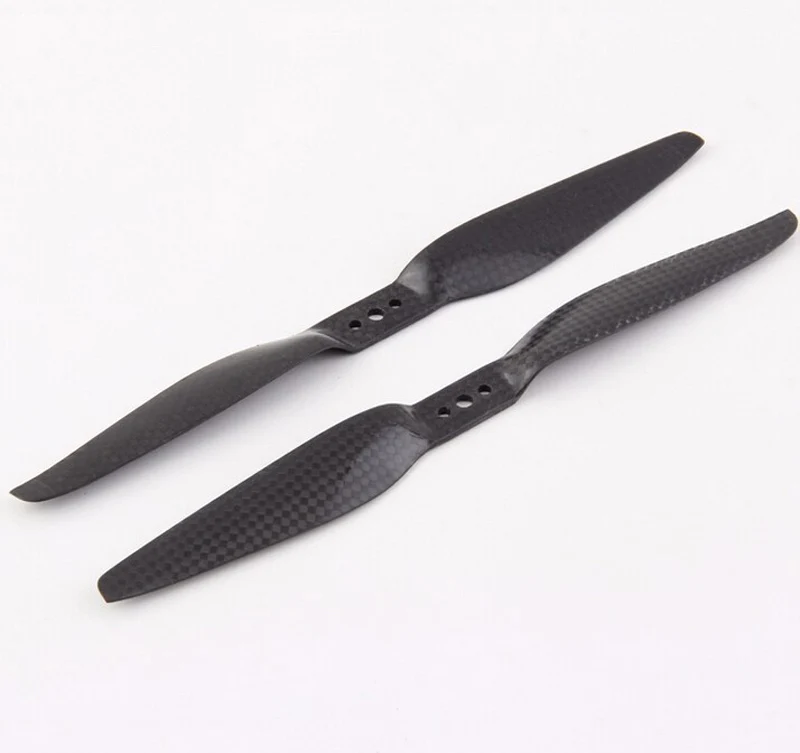

2Pairs T-Motor 3K Carbon Fiber Propeller 1455
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

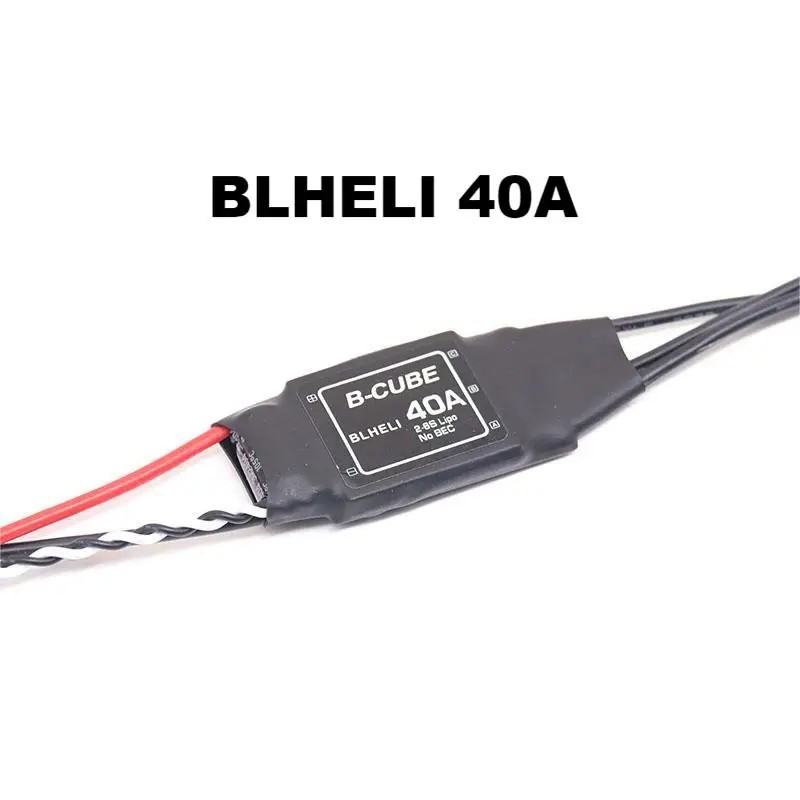

4PCS BLHELI 40A
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

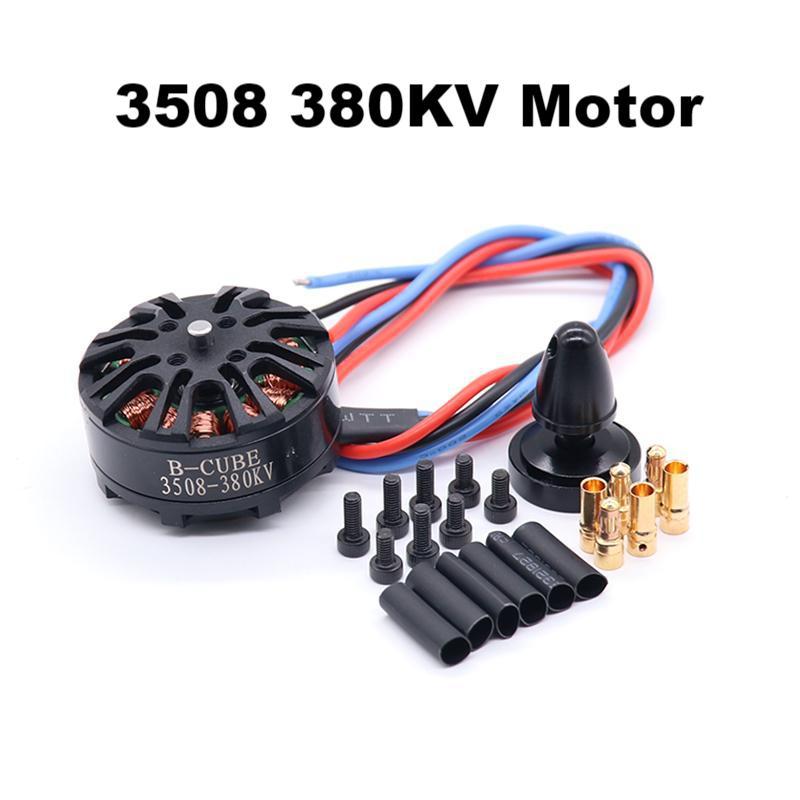

4PCS 3508 380KV Motor
Color Classification:Black

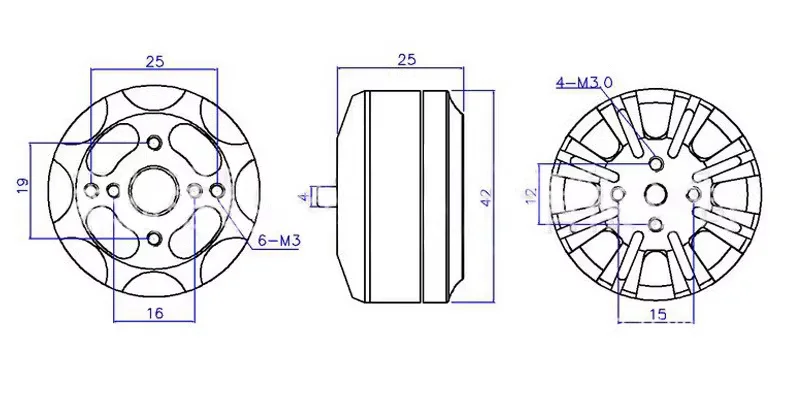

Motor Technical Parameters:
-
KV Value:KV380
-
Model:MX3508
-
Motor Diameter:42mm
-
Motor Length (No Shaft):24mm
-
Stator Diameter:35mm
-
Stator Length:8mm
-
Shaft Diameter:4mm
-
Weight:90g
-
Recommended Battery:4-6 Cells
-
Idle Current:0.3A
-
Top Mounting Hole:12mm x 12mm
-
Bottom Mounting Hole:25mm x 25mm
Suitable for:
-
Quadcopters
-
Hexacopters
-
Octocopters
-
Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
-
Flat design
-
Multiple slot extreme outer brushless motor
-
High torque and efficiency
-
Competitive price
-
Compatible with most market-leading drone frames (with multiple mounting holes)
-
Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
Number of Supported ESCs:8
Maximum Current Capacity:400A
Copper Thickness:7 oz
Weight:8.4g
Dimensions:Diameter 50mm, Mounting Hole Pattern 38mm
Screw Hole Size:M3

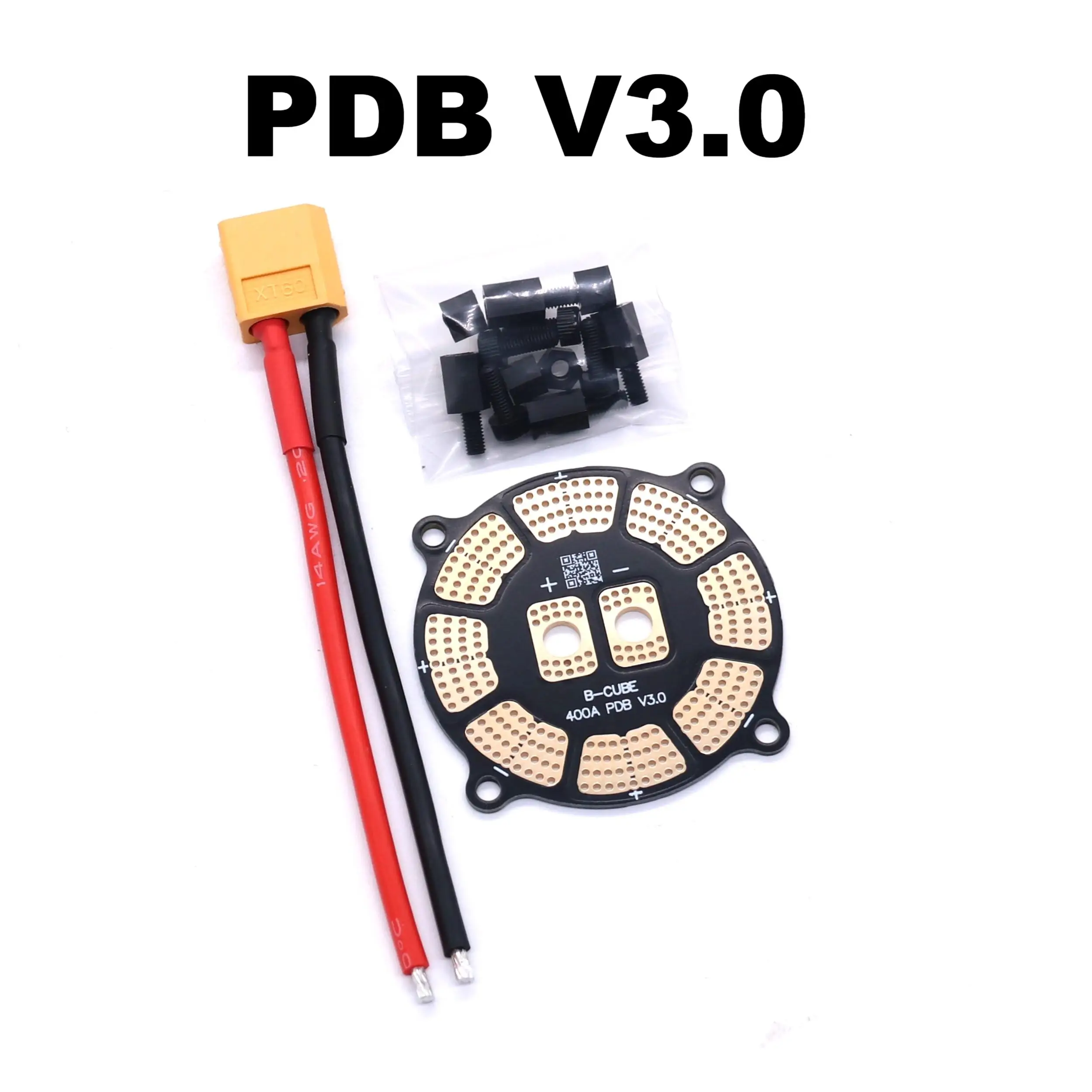

The upgraded V3.0 version has been improved based on the original design:
Copper thickness increased from 6 oz to 7 oz.
Output pad spacing enlarged to preent soldering errors.
Main current pad area enlarged.
Dimensions and mounting hole pattern remain unchanged.
M8N GPS:
Power Module
For PIXHAWK 2.4.8 :used for PIXHAWK2.4.8 AND APM2.8 Flight Control
For PIXHAWK PRO :used for PIXHAWK PRO Flight Control
For PIXHAWK 6C :used for PIXHAWK 6C Flight Control
Description:
This Power Module PRO provides a simple way to supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable. It comes with pre-soldered wires, capacitor, and XT60 connector on both ends, along with shrink tubing on the PCBA for physical protection.
Specification:
Input Voltage: 2S-12S
PCB Cont. Current Rating: 60A
PCB Burst Current Rating: 100A (<60 Sec)
Max Current Sensing: 120A
Output: DC 5.2V & 3A Max
Voltage Divider: 18.182
Amperes per Volt: 36.364
Weight: 20g
Please Note:
The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
RGB:
The powerful features of Pixhawk are self-evident. Its integrated RGB full color multifunctional indicator light has high brightness, making it easy to identify flight control status. Compared to previous APMs, it is more intuitive and clear, making it a great design. But the problem lies here: this RGB LED is facing upwards and can only be viewed on the ground, unable to recognize flight control status in the air. Additionally, some racks have a fully enclosed design, such as the SKY-HERO, where the flight control can be hidden between two central boards, making it difficult for users to easily connect USB cables while being well protected. So we referred to the official accessory design and launched this two in one Pixhawk RGB module.
The Pixhawk RGB module has the following characteristics:
·Extend the RGB indicator light to the exterior of the aircraft to display;
·Extend the USB port to facilitate external connection to the USB cable, without being limited by the flight control installation location;
·The Toshiba LED controller and Osram's RGB high brightness LED are identical to those on the Pixhawk board;
·Molex original 1.25 connector and HRS original USB socket ensure good contact stability.
Use OLED for PIXHAWK, must follow these steps,
Connect OLED to I2C port of Pixhawk
Upload ardupilot firmware, at least 3.5 version, below 3.5 version will not be display.
Use Mission Planner to modify parameters NTF_DISPLAY_TYPE to 1. After modify, remember to click “Write Params” button.
Now the OLED is only supported for ardupilot firmware,can not be supported PX4 firmware
Reboot the board.
I2C:
PPM:

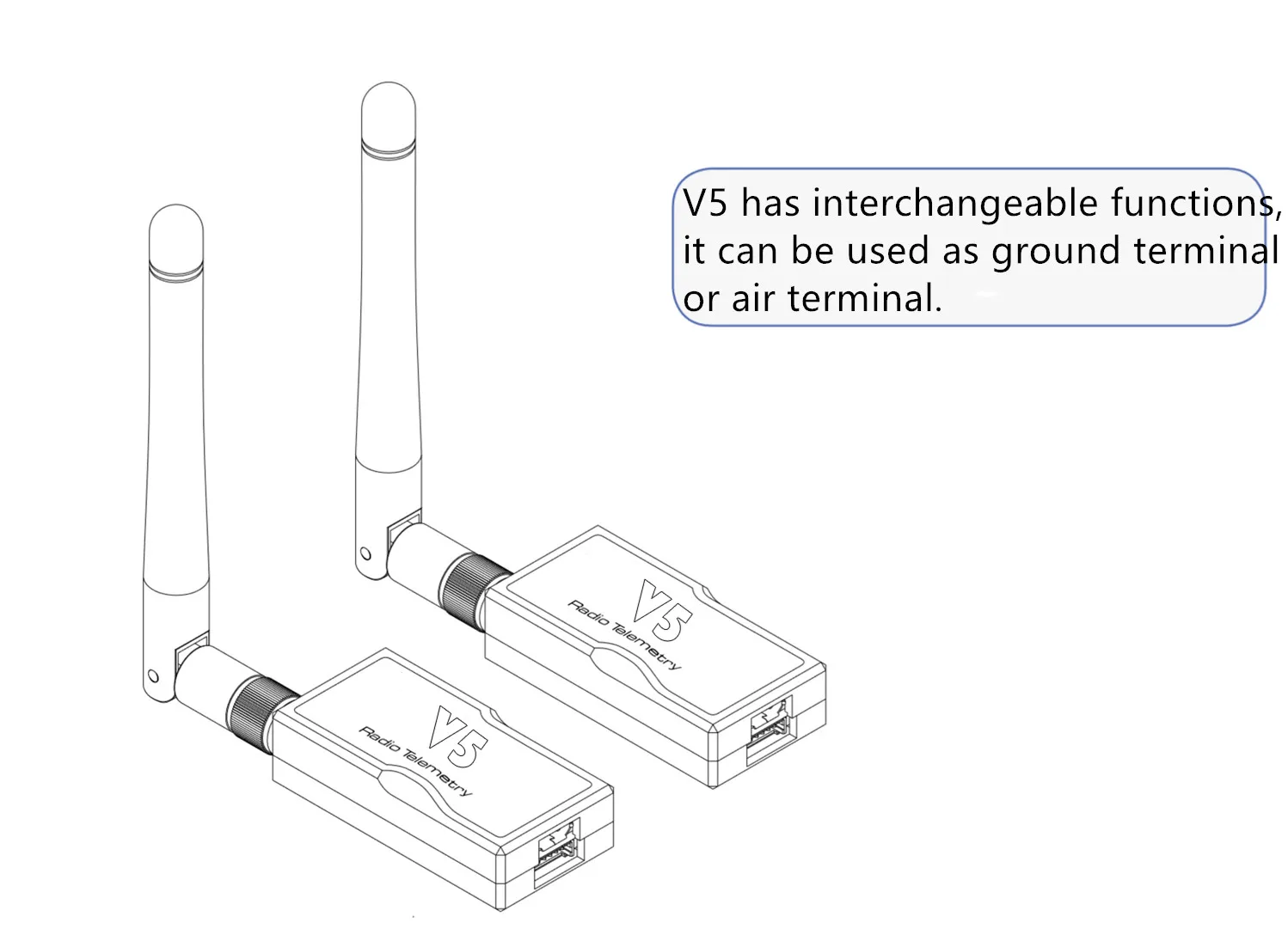

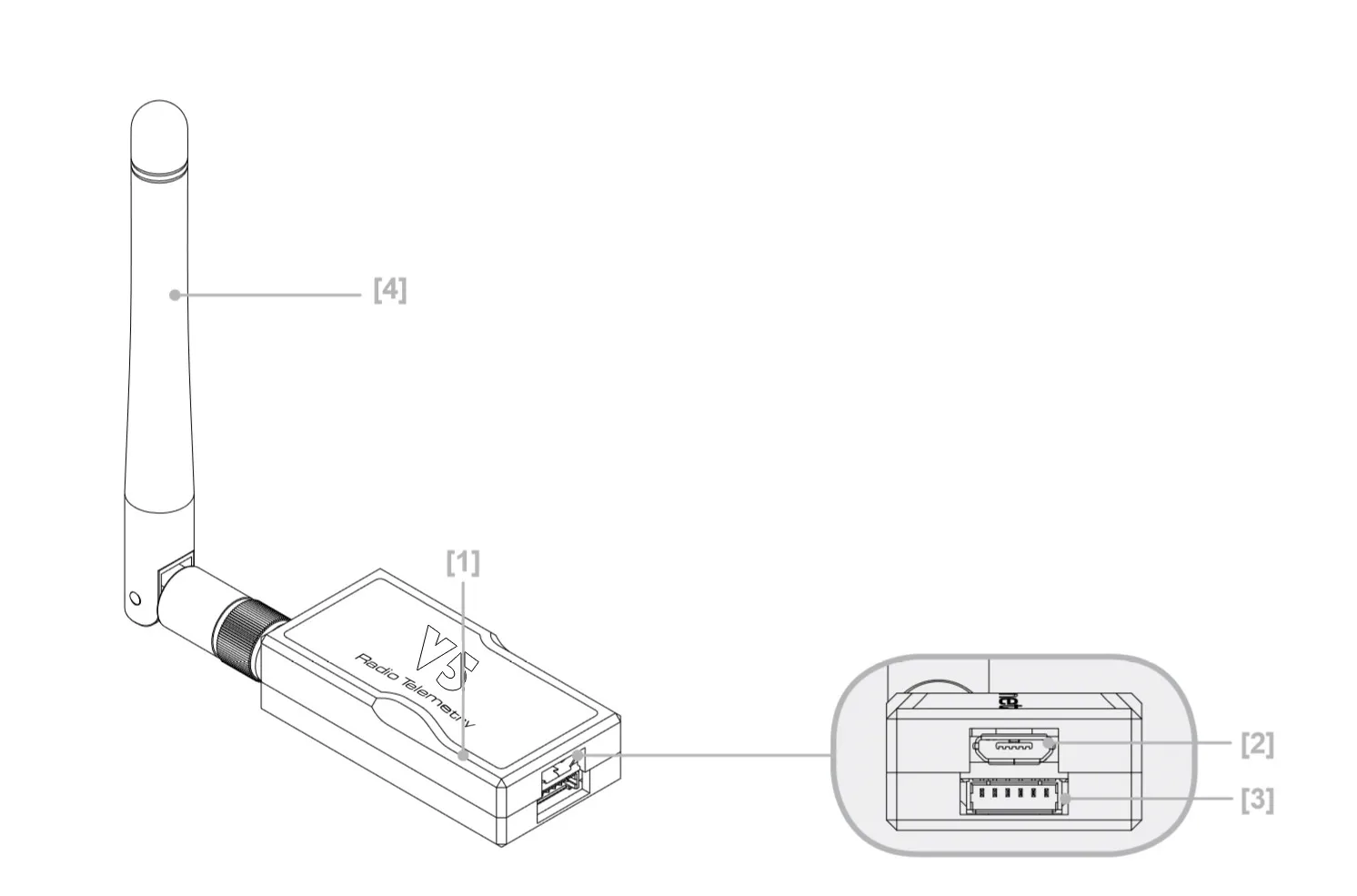

Radio Telemetry V5:
